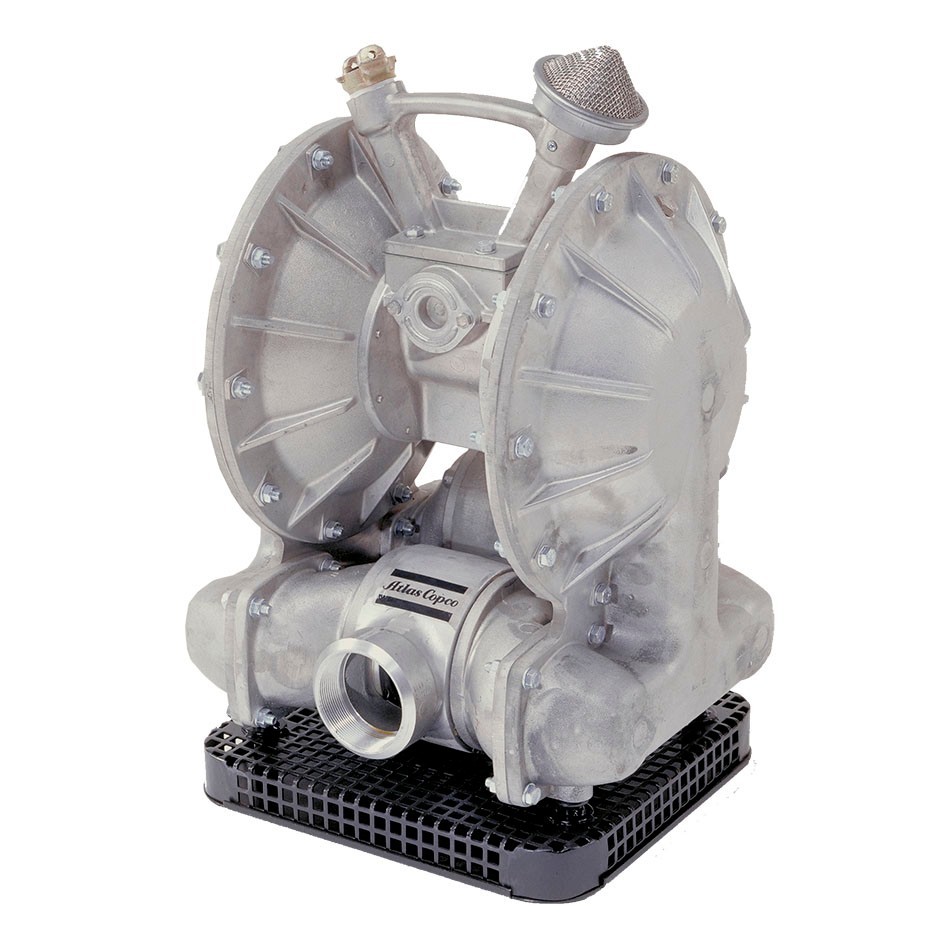

DOP diaphragm pumps for polluted high viscosity fluids

- Easy to handle: it only takes one person th handle the DOP
- Safe intake: the air intake with strainer prevents contaminants from entering the pump via the air
- Self-priming: the DOP is self-filling, which means less unnecessary handling in rough environments
- Reach the corners: by pivoting intake coupling together with an optional suction hose
- Stable operations: strainer at the base prevents particles >30mm from passing through the pump
- Submersible: the built in non-return valve makes the pump submersible and independent of orientation
- Lift more: DOP can be connected in series to increase the lifting capacity or "head".
- Less stress: A pivoting connection pipe means reduced stress on the hose.

DOP 15F

Energy

Pneumatic

Max. head

59 m

Pump flow max

420 l/min

Air consumption

34 l/s

Weight

31 kg

Fluid outlet thread

G 2 1/2

Air inlet

G 3/4

Width

0 mm

Oil flow

0 l/min

Working pressure

0

Part number

8492 0101 63
