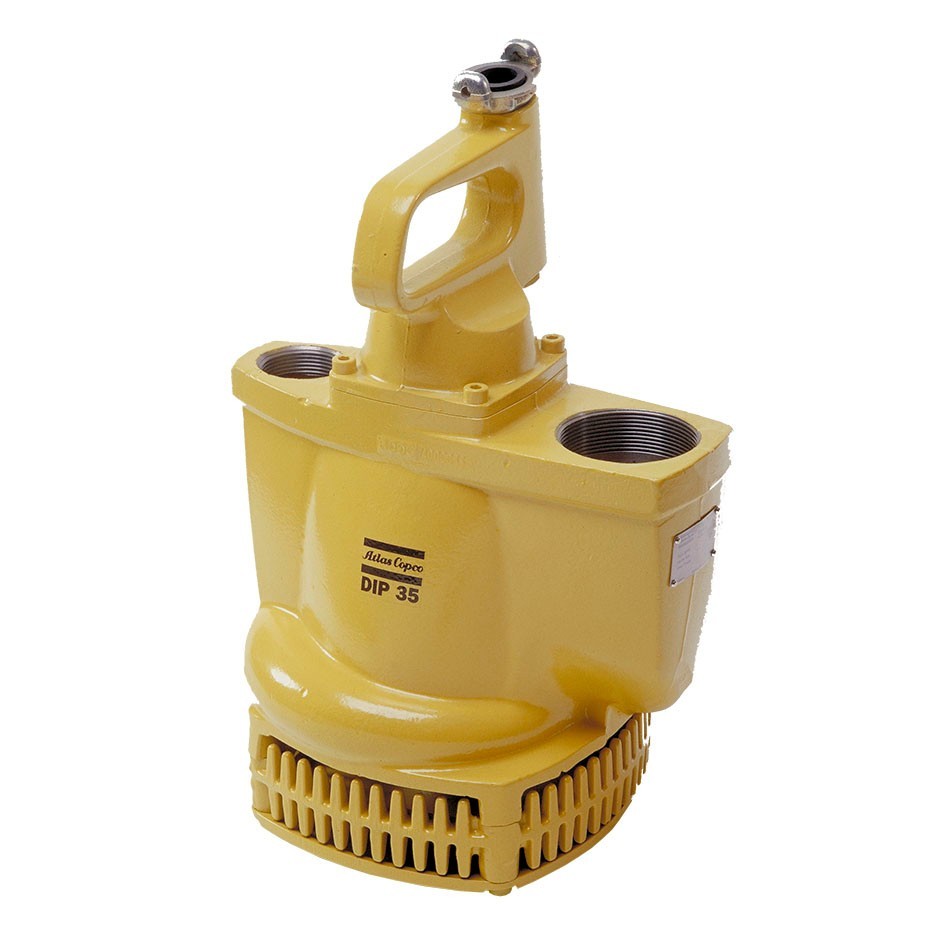

DIP centrifugal pumps for clean viscosity fluids
- Large grip: it´s got a great grip, which makes it easy to carry around.
- Safe air intake: the strainer prevents contaminants from entering the pump.
- Power to weight: compact design and a high-output pneumatic motor give the DIP pumps high capacity in relation to petrol and electric motors of the same weight.
- Leak-free: a specially designed rotating mechanical seal prevents leakage.
- Submersible action: the DIP is submersible with the optional non-return valve. Alternatively you can connect a hose to keep the air outlet above surface.
- Quiet please: Attach the optional silencer to improve working conditions
- Stainless protection: the stainless steel impeller is resistant to both corrosion and many chemicals.
DIP 25
|
Energy |
Pneumatic |
|
Max. head |
25 m |
|
Pump flow max |
1 680 l/min |
|
Air consumption |
70 l/s |
|
Weight |
23 kg |
|
Fluid outlet thread |
G 2 1/2 |
|
Air inlet |
G 3/4 |
|
Air outlet |
G 1 1/2 |
|
Width |
0 mm |
|
Oil flow |
0 l/min |
|
Working pressure |
0 |
|
Part number |
8492 0103 20 |
Accessories
| Equipment | incl. | Part number |
|---|---|---|
| DIP 25 kit | 8492 0103 53 | |
| 1x Pump | ||
| 1x Outlet hose 76 mm x 25 m incl. fittings | 3330 0034 91 | |
| 1x Lubricator CLG 30 | 8202 5102 39 | |
| 1x Non-return valve with pipe | 3330 0032 91 | |
