Increase utilisation of your carrier
Our range of excavator pulverizers for demolition of reinforced concrete work in both primary and secondary demolition. They help you to reduce your investment and operation cost.

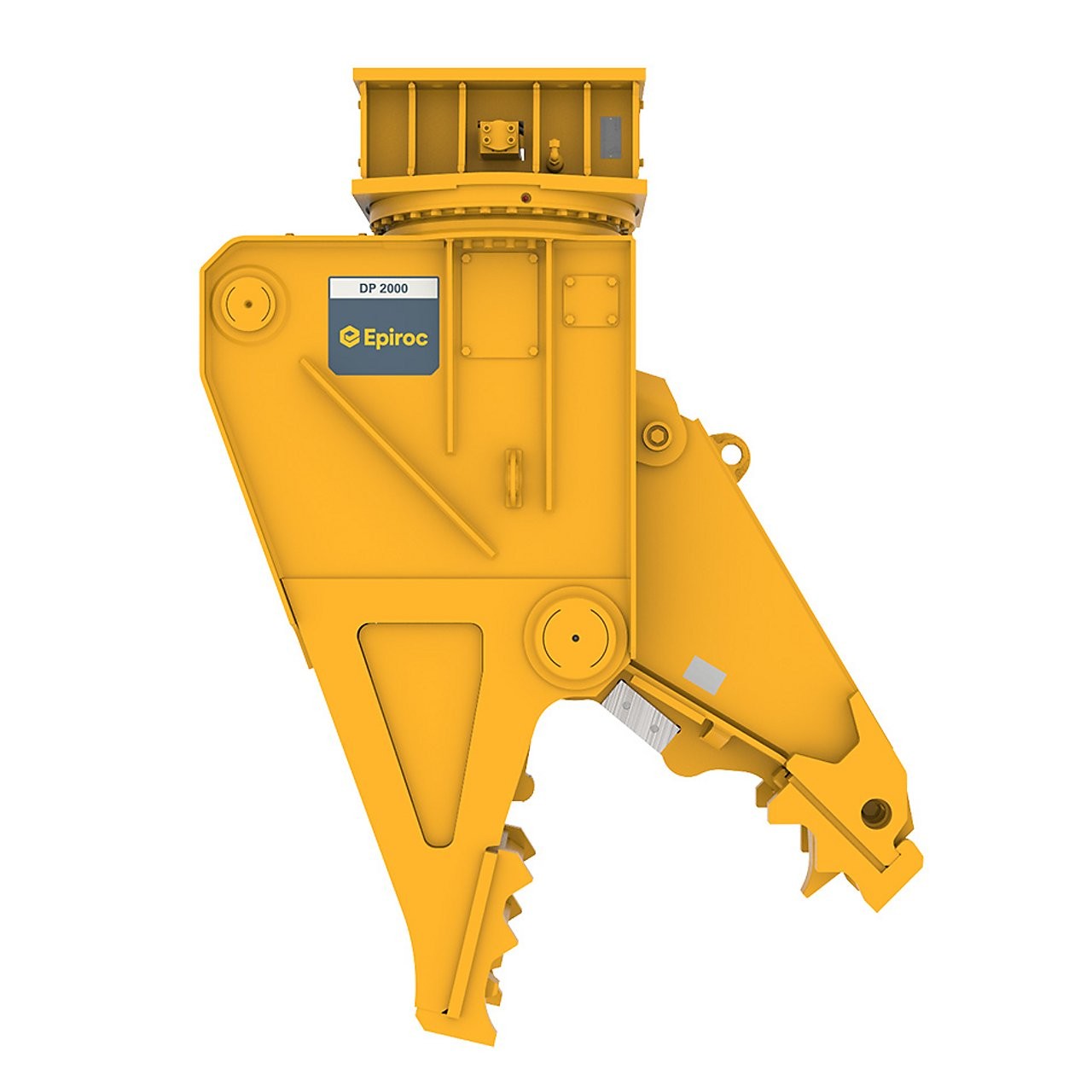

DP 2000
|
Carrier weight class ¹ |
18 t - 27 t |
|
Service weight ² |
2 130 kg |
|
Jaw opening |
820 mm |
|
Jaw depth |
650 mm |
|
Blade length |
190 mm |
|
Cutting force - upper blades |
265 t |
|
Crushing force, jaw tip |
85 t |
|
Operating pressure |
350 bar |
|
Oil flow |
150 l/min - 250 l/min |
|
Closing cycle |
4 Seconds |
|
Opening cycle |
4 Seconds |
|
Max operating pressure, rotation |
170 bar |
1.Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment.
2.Attachment with average-sized adapter plate.
Connection hoses
|
Hoses |
Length, mm |
Hoses |
Cap nut carrier side |
|---|---|---|---|
|
Connection hose |
2300 |
3363 0946 45 |
30 S, (M 42 x 2) |
|
Connection hose |
2800 |
3363 0946 46 |
30 S, (M 42 x 2) |
|
Hose for rotation |
2800 |
3363 0317 67 |
12 S, (M 20 x 1.5) |
|
Hose for rotation |
3500 |
3363 0343 99 |
12 S, (M 20 x 1.5) |
