Design follows function
The angled shape and broad jaw help to speed up work. Bulk pulverizers enable clean separation of rebar and concrete and their subsequent reduction into grain sizes suitable for crushing or use as backfill. The optional hydraulic rotation drive also makes it possible to use our bulk pulverizers for a more efficient primary demolition of ceilings and walls.

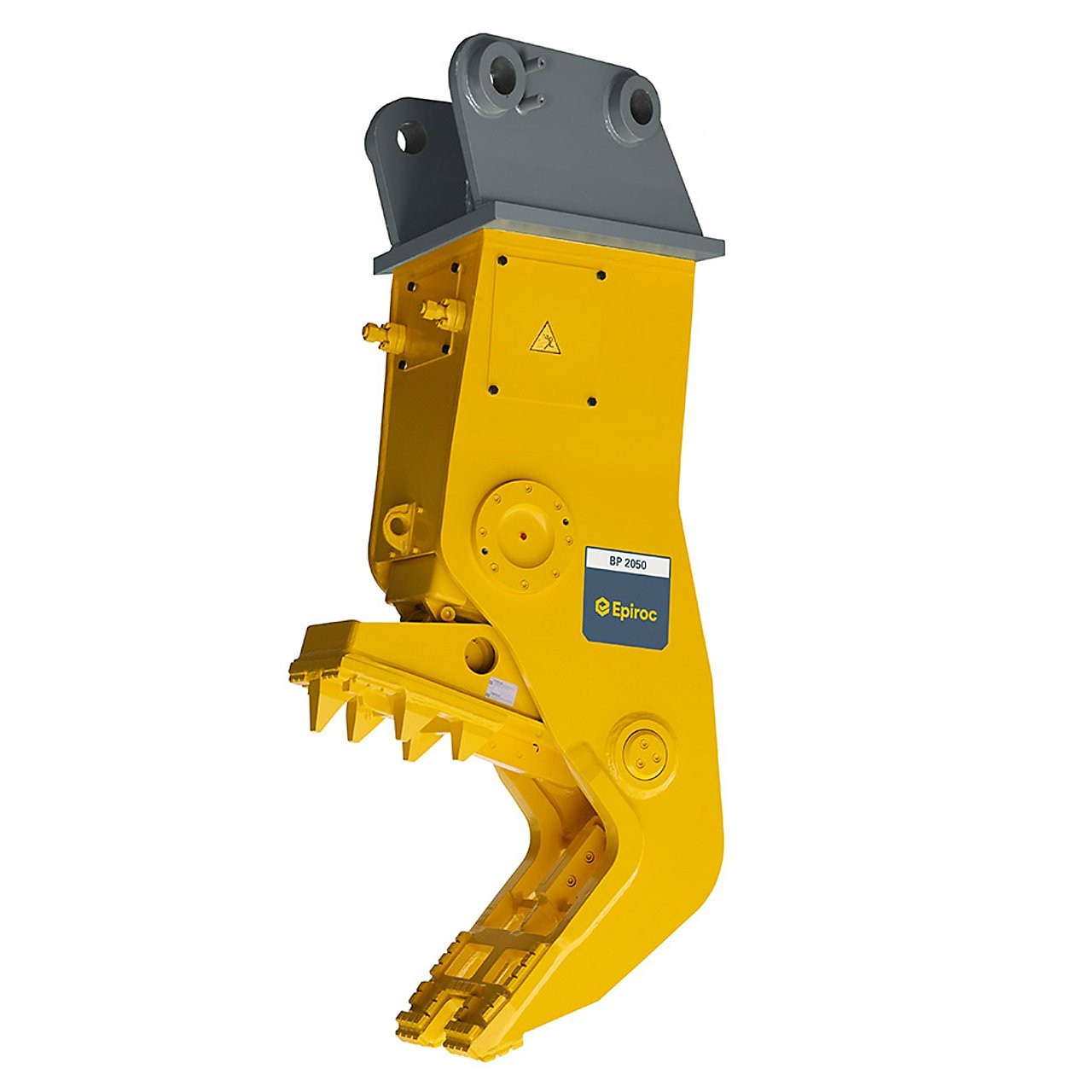

BP 2050
|
Carrier weight class ¹ |
18 t - 27 t |
|
Service weight ² |
2 090 kg |
|
Jaw opening |
875 mm |
|
Jaw depth |
610 mm |
|
Blade length |
190 mm |
|
Cutting force - upper blades |
290 t |
|
Crushing force, jaw tip |
90 t |
|
Operating pressure |
350 bar |
|
Oil flow |
150 l/min - 250 l/min |
|
Closing cycle |
2,5 Seconds |
|
Opening cycle |
2,9 Seconds |
|
Max operating pressure, rotation |
170 bar |
1.Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment.
2.Attachment with average-sized adapter plate.
Connection hoses
|
Hoses |
Length, mm |
Hoses |
Cap nut carrier side |
|---|---|---|---|
|
Connection hoses for non-rotating version |
2300 |
3360 9923 40 |
30 S, (M42 x 2) |
|
Connection hoses for non-rotating version |
2800 |
3361 8538 59 |
30 S, (M 42 x 2) |
