Technical specifications, metric
|
Model |
|
BC 2100 ³ |
BC 2500 ³ |

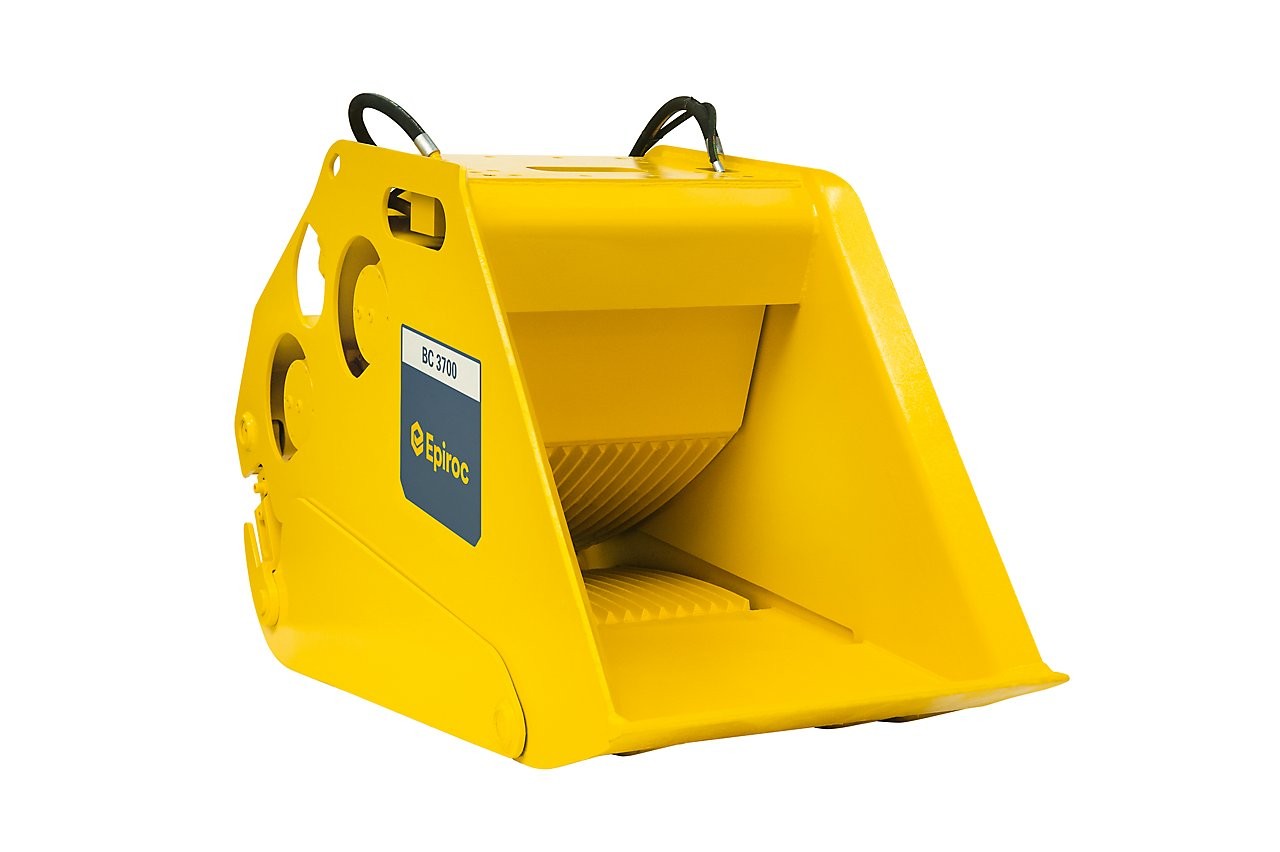

BC 3700 ³ |
BC 5300 ³ |
|---|---|---|---|---|---|
|
Carrier weight class ¹ |
t |
18-28 |
22-30 |
28-38 |
35-54 |
|
Service weight ² |
kg |
2.250 |
2.870 |
4.290 |
6.050 |
|
Length |
mm |
2.046 |
2.465 |
2.575 |
2.829 |
|
Height |
mm |
1.311 |
1.500 |
1.600 |
1.700 |
|
Width external |
mm |
930 |
800 |
940 |
1280 |
|
Width internal |
mm |
730 |
730 |
900 |
1100 |
|
Crushing size |
mm |
20 / 40 / 60 / 90 |
20 / 45 / 70 / 95 / 125 / 150 |
||
|
Load capacity |
m³ |
0,5 |
0,8 |
1 |
1,2 |
|
Operating pressure |
bar |
250 |
250 |
250 |
320 |
|
Max. leakage oil pressure |
bar |
4 |
4 |
4 |
4 |
|
Oil flow |
l/min |
140-160 |
160-180 |
180-200 |
300 |
| ¹ Weights apply to standard carriers only. Any variances must be agreed with Epiroc and/or the carrer manufacturer prior to attachment. ² Attachment with average-sized adapter plate. ³ Drainage line required | |||||
Connection hoses
|
Length, mm |
P + T hoses |
Separate drain hose |
Cap nut both sides |
|---|---|---|---|
|
2300 |
3363 1180 27 |
|
30 S, (M42 x 2) |
|
2300 |
|
3363 1180 28 |
20 S, (M24 x 1.5) |
