Rock drilling is tough work, but we always try to make it as easy as possible for you

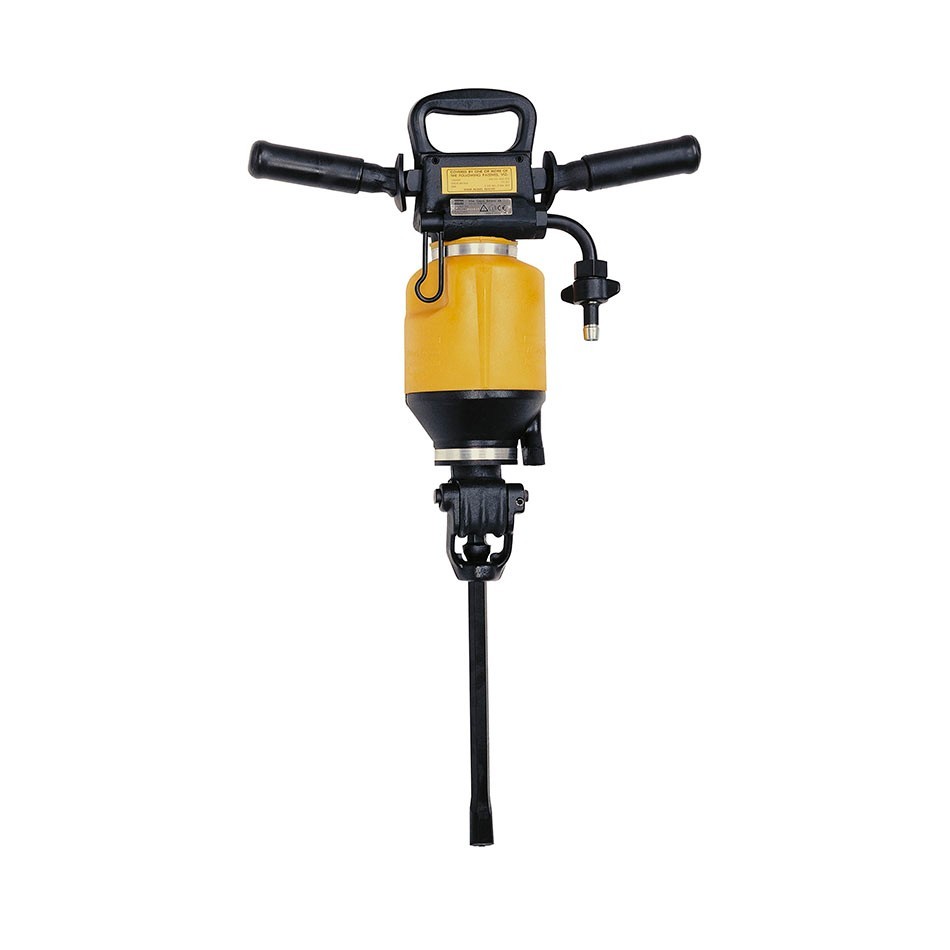

The medium-weight BBD15E has a combined ”T/D handle” that make it easy for you to carry. It offers a high power-to weight ratio and a high operational safety. The E means it’s equipped with spring dampened handles and a highly effective silencer. The largest BBD drill is available in a version with a trigger valve, BBD 15ET. If you have an older machine it’s possible to retrofit it with a trigger conversion kit.
Technical specifications
|
Rock drill type |
Surface rock drill |
|
Hole range |
17 mm - 29 mm |
|
Weight |
15,5 kg |
|
Length |
575 mm |
|
Air consumption |
22 l/s |
|
Impact rate |
2 520 blows/min |
|
Revolutions |
220 rpm |
|
Penetration rate |
220 mm/min |
|
Hose connection |
19 mm |
|
Piston diameter |
45 mm |
|
Stroke length |
40 mm |
