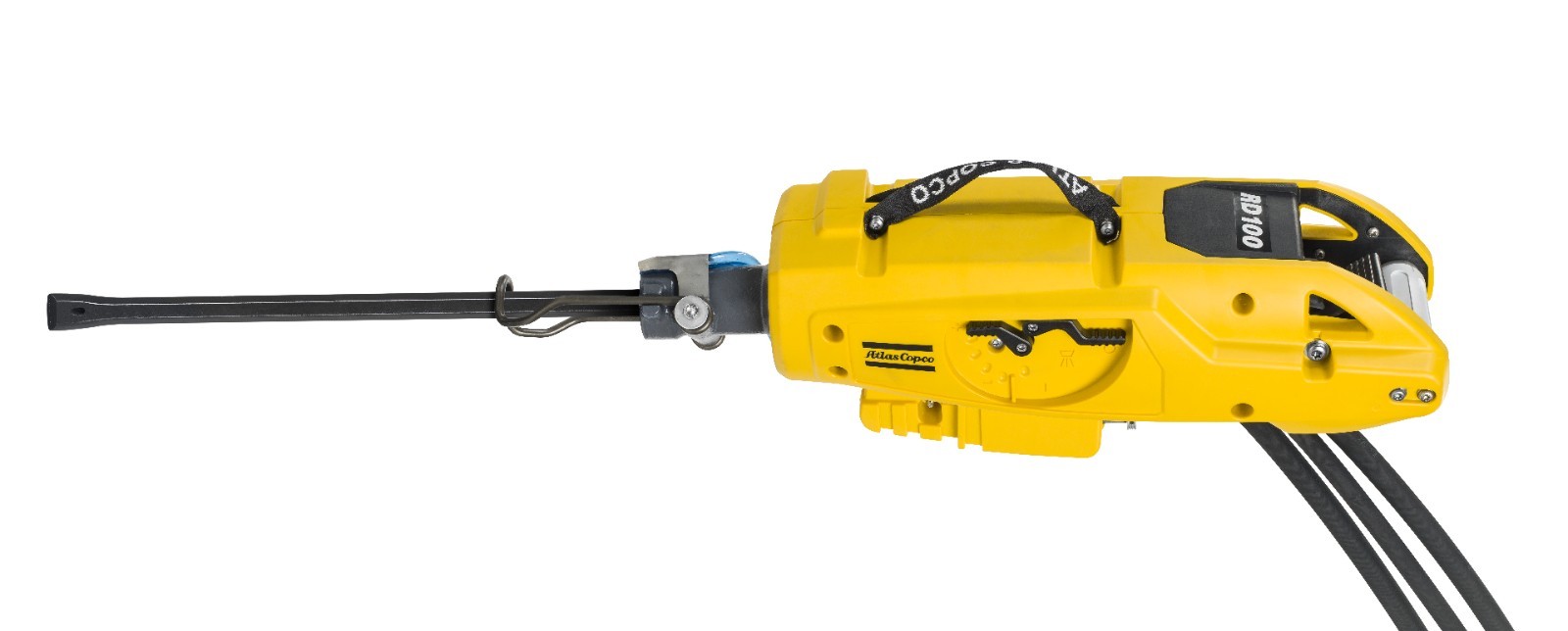

RD 100 hydraulic underground rock drill
The RD100 has a soft start function that is easy to reach with one hand. This means you can work with more precision, and collaring is made especially easy.
When it’s time to go faster, the RD100 is one of the most powerful drills on the market. The hydraulic system has an increased drill rate compared to electrical systems, and is considerably more energy efficient than pneumatic drills.
Technical specifications
|
Rock drill type |
Underground rock drill |
|
Weight without hoses |
23 kg |
|
Max. hole diameter |
42 mm |
|
Max. drilling depth |
2,4 m |
|
Length |
655 mm |
|
Oil flow |
38 l/min |
|
Working pressure |
100 bar - 120 bar |
|
Impact rate |
3 600 blows/min - 3 900 blows/min |
|
Working temperature, oil |
20 °C - 60 °C |
|
Working temperature, water |
5 °C - 30 °C |
|
Water flow rate |
10 l/m |
|
Ambient temperature |
5 °C - 40 °C |
|
Shank size: Hex |
22x159 mm - ⅞ x 6¼ inch |
|
Part number |
8311 0304 10 |
