DIP centrifugal pumps for clean viscosity fluids

- Large grip: it´s got a great grip, which makes it easy to carry around.
- Safe air intake: the strainer prevents contaminants from entering the pump.
- Power to weight: compact design and a high-output pneumatic motor give the DIP pumps high capacity in relation to petrol and electric motors of the same weight.
- Leak-free: a specially designed rotating mechanical seal prevents leakage.
- Submersible action: the DIP is submersible with the optional non-return valve. Alternatively you can connect a hose to keep the air outlet above surface.
- Quiet please: Attach the optional silencer to improve working conditions
- Stainless protection: the stainless steel impeller is resistant to both corrosion and many chemicals.

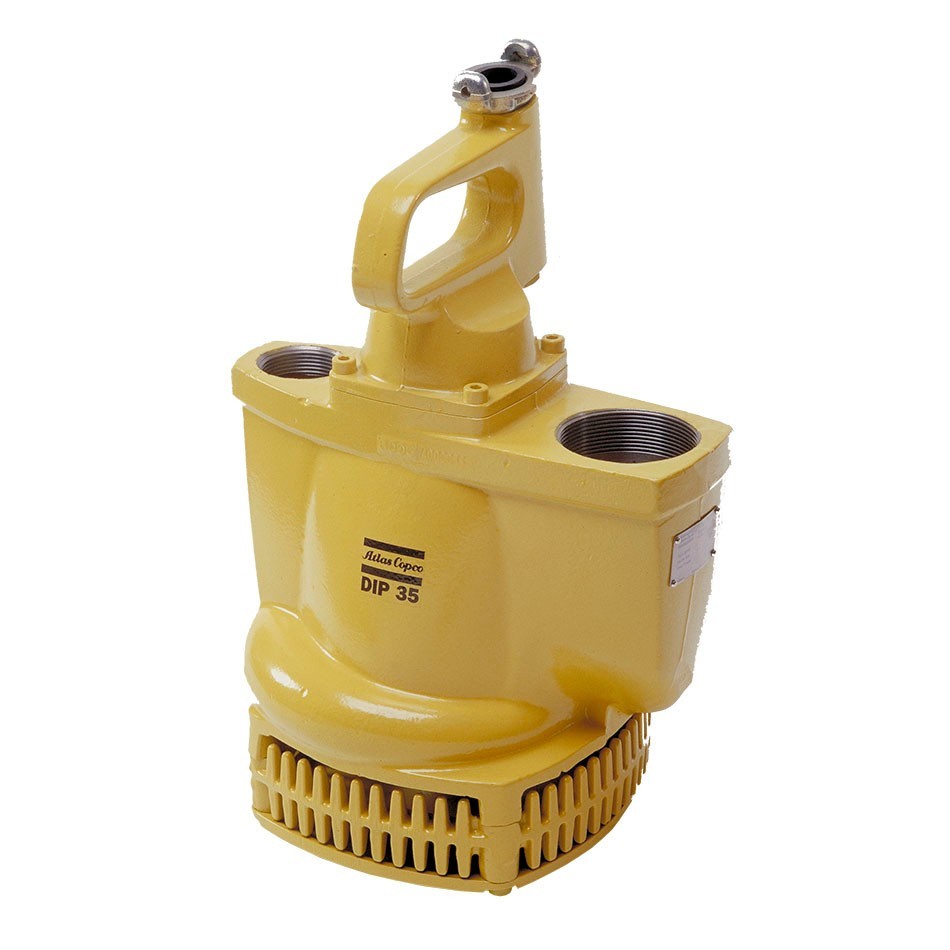

DIP 35

Energy

 Pneumatic

Max. head

 35 m

Pump flow max

 1 320 l/min

Air consumption

 70 l/s

Weight

 23 kg

Fluid outlet thread

 G 2 1/2

Air inlet

 G 3/4

Air outlet

 G 1 1/2

Width

 0 mm

Oil flow

 0 l/min

Working pressure

 0

Part number

 8492 0103 38

Accessories



Equipment incl. Part numbers
DIP 35 kit   8492 0103 61
  1x Pump
  1x Outlet hose 63 mm x 32 m incl. fittings 4950 0191 90
  1x Lubricator CLG 30 8202 5102 39
  Non-return valve with pipe 3330 0032 91
